DIGITAL CURRENT ON/OFF CONTROL (e.g. 0-20mA)
APPLICATIONS > DIGITAL OUTPUT >

Output Hardware

The following instruNet hardware provides digital output channels that can turn current on/off with the help of a 3rd party external solid state relay, mechanical relay, transistor or Mosfet; as illustrated in the below drawing. For details on working with digital i/o channels, click here.

Output Hardware

The following instruNet hardware supports Thermocouple Measurements:

i420 / i423 / i430 / i460 i60x i100

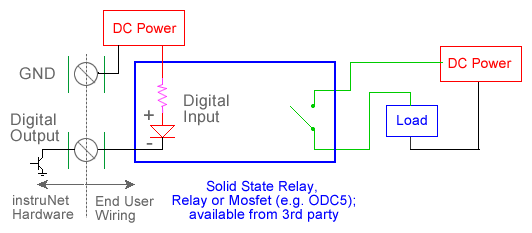

Wiring Diagram
