ANALOG CURRENT OUTPUT (e.g. 0-20mA)
APPLICATIONS > ANALOG OUTPUT >

Output Hardware

The instruNet hardware does not directly output current, yet does have analog voltage output channels that can drive external voltage-to-current converters available from 3rd parties. For details on setting up voltage output channels, click here. The following hardware provides analog voltage output channels:

i100 i430

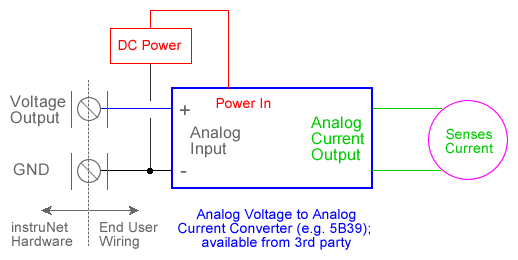

Wiring Diagram
