FREQUENCY MEASUREMENT
APPLICATIONS > COUNTER/TIMER >

Measurement Hardware

The following instruNet hardware provides digital input channels that can measure the frequency of incoming pulses (e.g. pulses per second):

i200 Controller PCI Card



Frequency Measurement with the iNet-200 PCI Card

The Model 200 (not 230) instruNet PCI Controller boards have 10 digital input/output channels, each of which can be used to measure the frequency (in Hz) of a digital input signal. For details on how to use the i200 counter/timer channels, click here; and for specifications, click here.

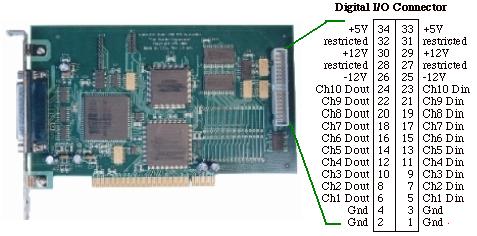

Wiring Diagram
