TYPICAL INSTRUNET SYSTEMS
INSTALLATION >

Typical Sytems






i601 Standalone USB Device + i512 Wiring Box

Components i601 USB device with Electrical Isolation
i512 Sensor Wiring Box

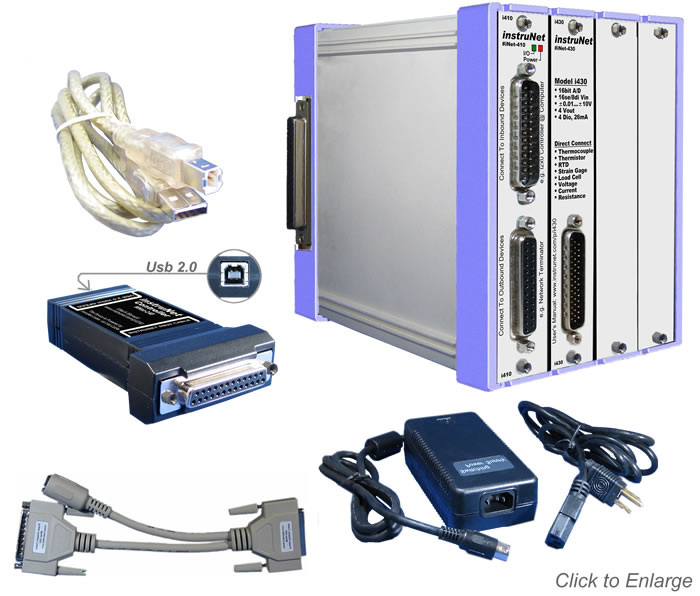

i240 USB Controller + 4 Slot Card Cage + A/D + Power Supply

Components i240 USB 2.0 instruNet Controller (includes Db25 terminator & Usb Cable)
i312.8 Power Supply (includes i300 Adaptor Cable)
i400 Card Cage
i410 Interface Card (includes 10 Foot Db25 Cable)
i430 A/D Card

Diagram




Save System as above, yet with additional Optical Isolation

Components i240 USB 2.0 instruNet DSP Controller (includes Db25 terminator)
i312.8 Power Supply, Quantity 2 (includes i300 Adaptor Cable)
i330 Optical Isolator
i400 Card Cage
i410 Interface Card (includes 10 Foot Db25 Cable)
i430 A/D Card

Diagram




i240 USB Controller + 8 Slot Card Cage + A/D + Vin Card



Components i240 USB 2.0 instruNet Controller (includes Db25 terminator & Usb Cable)
i312.8 Power Supply (includes i300 Adaptor Cable)
i400 Card Cage, Quantity 2 (includes assembly hardware)
i410 Interface Card (includes 10 Foot Db25 Cable)
i430 A/D Card
i420 20 Channel Voltage Input Card


Diagram
