Ultra-Accurate $560
USB Data Acquisition System

Measure Volts, Ohms, Amps, RTD, Thermocouple, Strain Gage, Load Cell.
GW Instruments recently set up Manhattan 2, a non-profit that
reduces CO2 emissions. For details, click here.

Ultra-Accurate $560
USB Data Acquisition System

Measure Volts, Ohms, Amps, RTD, Thermocouple, Strain Gage, Load Cell.

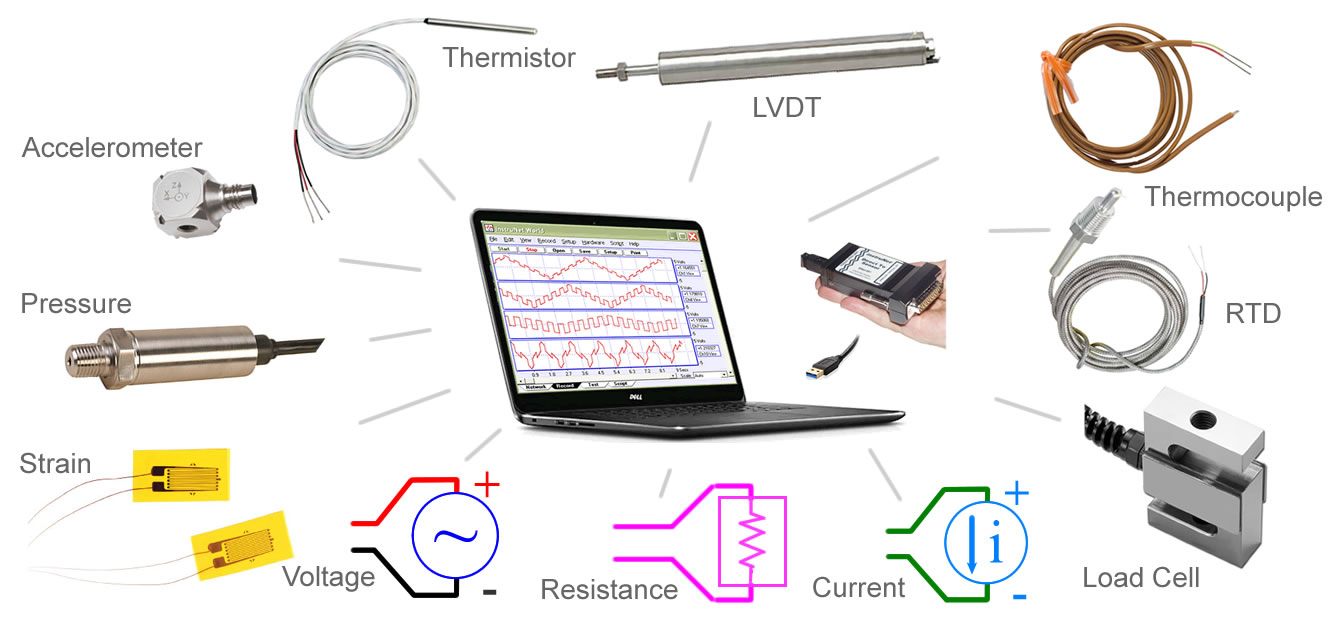

  • Connect Windows computer directly to sensors: Volts, Resistance, Current, Thermocouple, RTD, Thermistor, Strain Gage, Load Cell, Pressure, LVDT, Flow and Accelerometer.
  • instruNet i60x provides 16se/8di Voltage Input Channels with extremely accurate 24-bit A/D Converter29. Alternatively, one might consider the larger i555 card cage with 8 to 256 channels.
  • Voltage input ranges: ±20mV, ±40mV, ±80mV, ±150mV, ±300mV, ±600mV, ±1.2V, ±2.5V, ±5V, ±10V.
  • 4x Digital I/O (4mA sink/source, 0 to 3.3V).
  • i60x receives power from USB bus and provides excitation power (+3.3V, 80mA) to sensors.
  • Includes Free instruNet World strip chart recorder software; or purchase powerful PLUS version.
  • Compatible with Windows ≥ XP SP3 computers, 32-bit or 64-bit.
  • The i601 is the smallest and most accurate electrically-isolated 8channel direct-to-sensor data acquisition system in the world. To see how this compares with other products, click here.
  • For full i600/i601 datasheet, click here.
  • For i60x accuracy specifications, click here. Why so accurate? It was designed in 2016; whereas many competing products are older.
  • The i601 tiny standalone USB device provides ±36V bank electrical isolation; whereas the less costly i600 directly connects I/O signal ground to computer ground via USB cable.
  • Digitize at a maximum sample rate of 160K samples/sec for 1 channel, 12Ks/sec/ch for 2 channels, 6Ks/sec/ch for 4 channels or 3Ks/sec/ch for 8 channels.

Very low internal noise, as shown above (2μVrms, 1Ks/sec, ±20mV range) Compatible with Excel, LabVIEW, DASYLab, MATLAB, Origin, C & Visual BASIC on Windows ≥ XP SP3 Computers

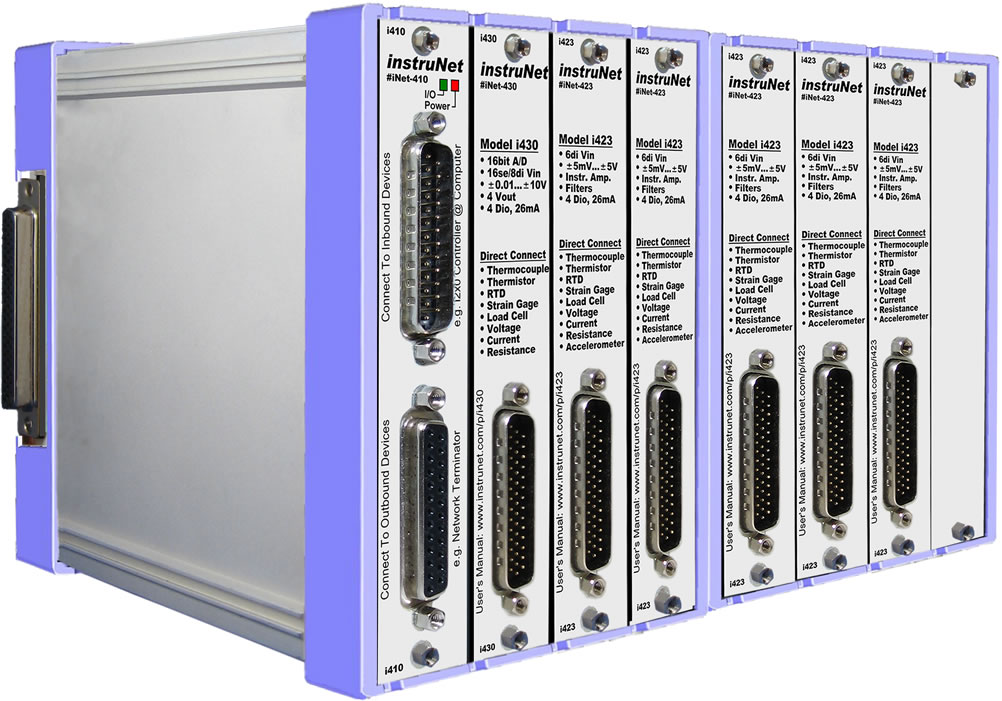

i60x can digitize concurrently with instruNet i555 card cage system; which supports 4, 8, 12 or 16 slots of analog/digital i/o hardware. Optional Wiring boxes:
i510,  i511,  i512





Connect to Sensors in Several Easy Steps

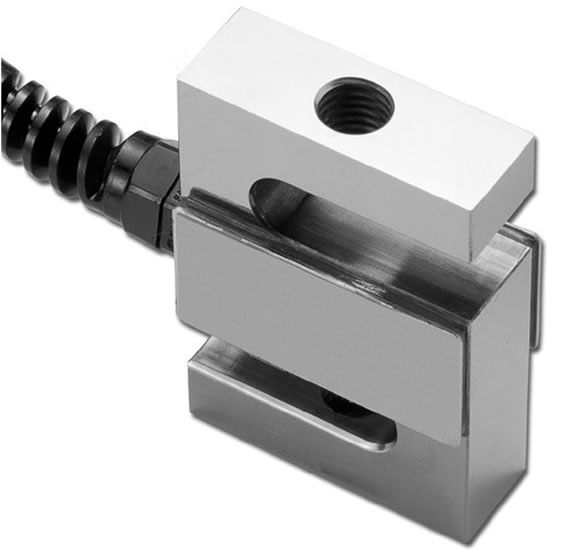

Connect to Load Cell
in several easy steps

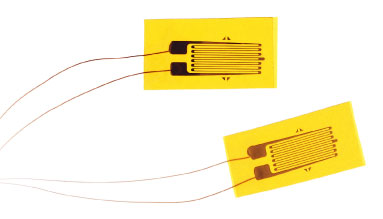

Connect to Strain Gage
in several easy steps

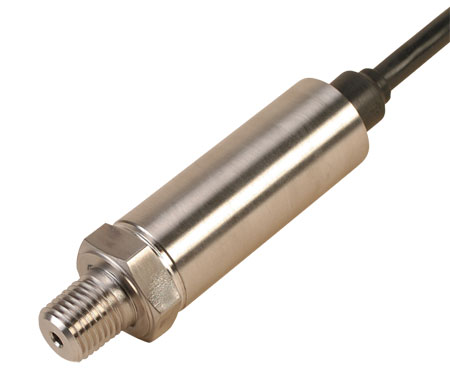

Connect to Pressure sensor
in several easy steps

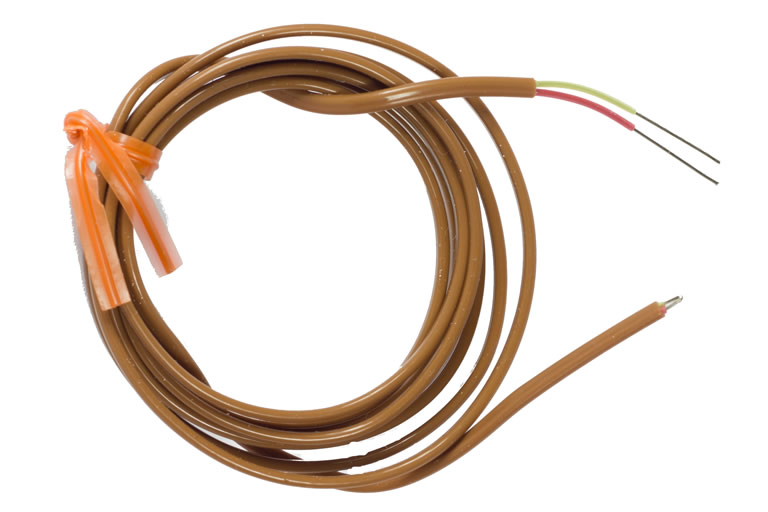

Connect to Thermocouple
in several easy steps

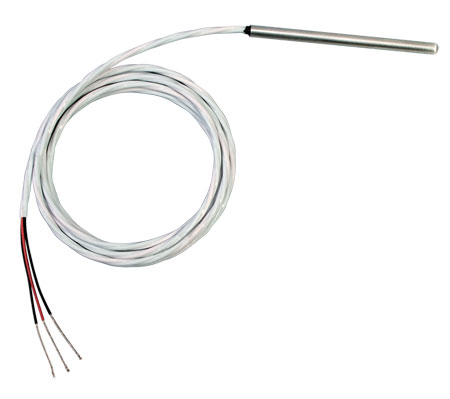

Connect to RTD
in several easy steps

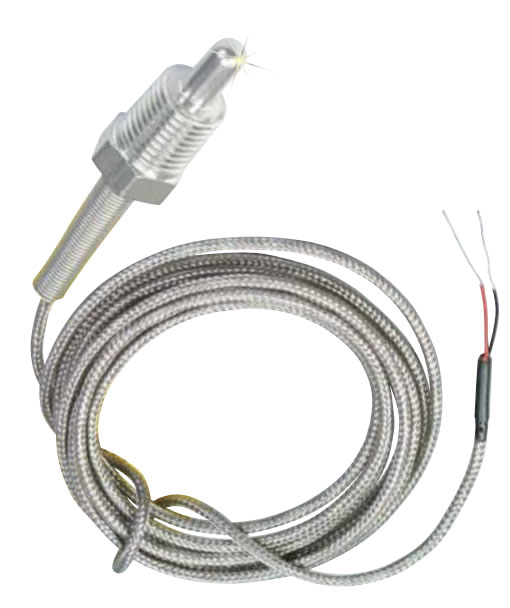

Connect to Thermistor
in several easy steps

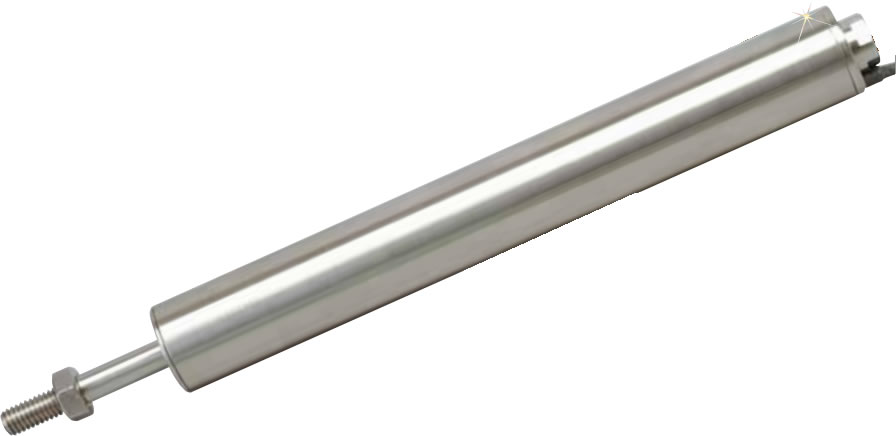

Connect to LVDT distance sensor
in several easy steps

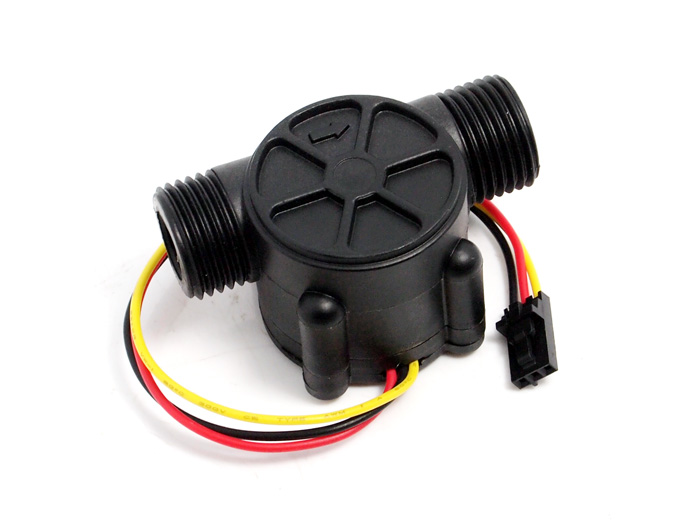

Connect to Flow sensor
in several easy steps

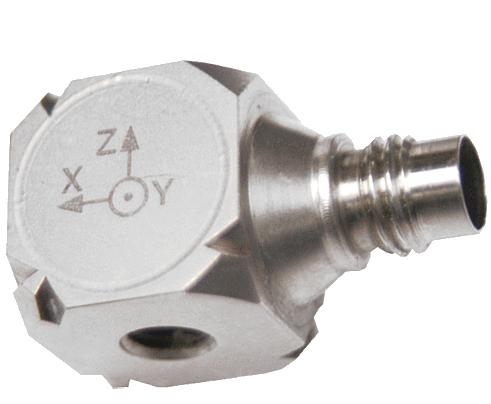

Connect to Accelerometer
in several easy steps

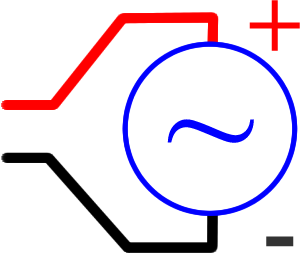

Connect to Voltage Source
in several easy steps

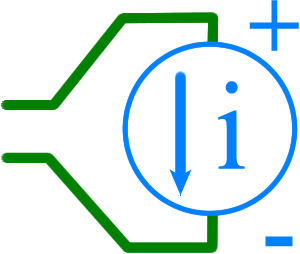

Connect to Current Source
in several easy steps

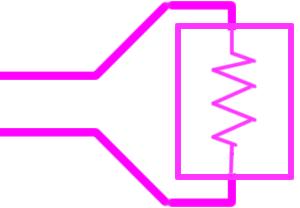

Connect to Resistance Device
in several easy steps
