MOUNTING INSTRUNET ON DIN RAILS
PRODUCT LIST > i100 >

Mounting i4xx Card Cage on Din Rails
To mount an i4xx Card Cage onto a 35mm DIN rail, pictured below, one must order 1 package of i4xx DIN Rail Mounting Brackets, Part #iNet-530. This package includes 2 brackets; and the hardware required to connect a 4, 8, 12, or 16 slot i4xx card cage to a Standard DIN rail or flat wall. For details on the i530 package, click here.

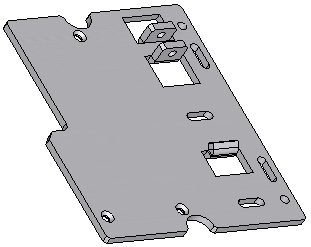

One i4xx Din Rail Mounting Bracket	Standard DIN

Mounting i100 on Din Rails

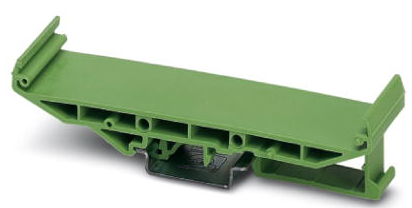

To mount an iNet-100xx to a 32C, 35x15D, or 35x7D DIN rail; one must order one i100 DIN Rail Mounting Bracket, Part #iNet-340. The i100 has two grooves in the base that clip to plastic brackets that affix to din rails.
